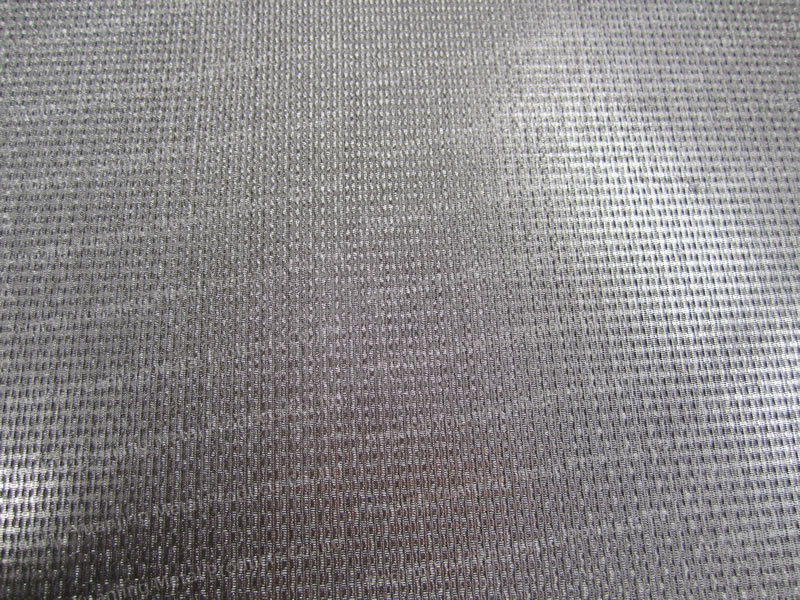

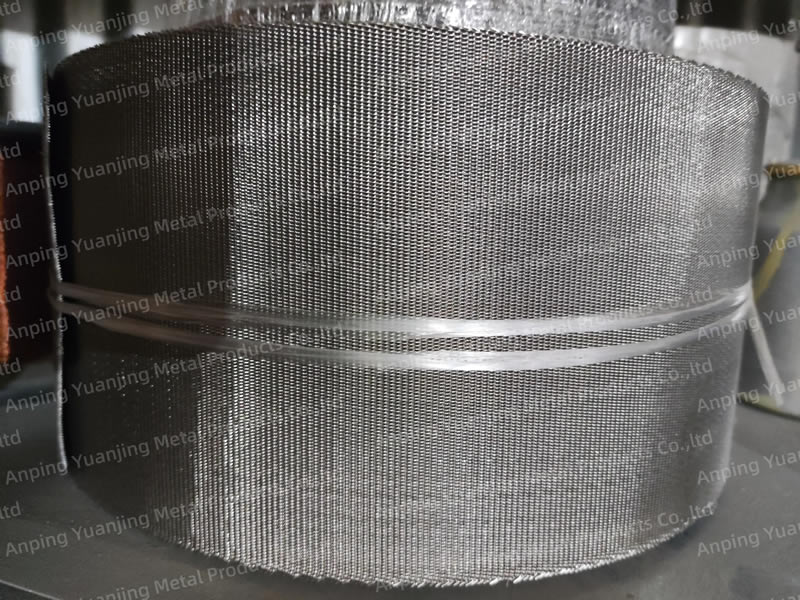

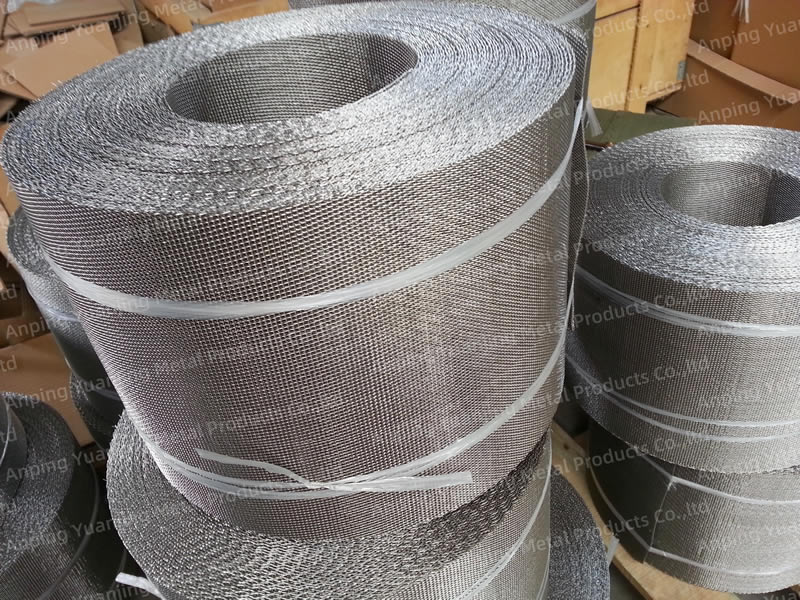

Stainless Steel Wire Mesh

We supply rolls, sheets, cut pieces, filter discs, filter cylinders, and fabricated parts for filtration, screening, separation, and equipment protection.

Common materials include stainless steel 302, 304, 304L, 316, 316L, and 430. Material grade, mesh count, wire diameter, roll width, and finished dimensions can be selected to suit the application.

Weaving Types

Plain weave
Twill weave
Dutch weave

Features

Uniform mesh openings
Good corrosion and heat resistance
Stable structure for cutting and forming
Available in rolls, sheets, and fabricated parts

Applications

Industrial liquid and gas filtration
Screening and particle separation
Food, chemical, petroleum, and pharmaceutical processing
Machine guards and equipment screens

Specifications

Mesh Count (Mesh/Inch)	Wire Diameter (mm)	Opening Width (mm)	Open Area (%)
1×1	2.03	23.37	84.6
2×2	1.60	11.10	76.4
3×3	1.37	7.09	70.1
4×4	1.60	4.75	56.0
4×4	1.19	5.16	65.9
5×5	1.04	4.04	63.2
6×6	0.89	3.35	62.7
8×8	0.71	2.46	60.2
10×10	0.64	1.91	56.3
12×12	0.584	1.52	51.8
14×14	0.584	1.22	45.2
16×16	0.457	1.13	50.7
18×18	0.432	0.98	48.3
20×20	0.508	0.76	36.0
20×20	0.406	0.86	46.2
24×24	0.356	0.70	44.2
30×30	0.330	0.52	37.1
35×35	0.279	0.45	37.9
40×40	0.254	0.38	36.0
50×50	0.229	0.28	30.3
60×60	0.191	0.23	30.5
70×70	0.165	0.20	29.8
80×80	0.165	0.15	23.0
90×90	0.127	0.16	30.1
100×100	0.114	0.14	30.3
120×120	0.094	0.117	30.7
150×150	0.066	0.104	37.4
200×200	0.053	0.074	33.6
300×300	0.038	0.046	29.7
400×400	0.025	0.037	36.0
500×500	0.025	0.025	25.0
